Kawasaki’s classic W230 model now available in two sophisticated colors

Kawasaki W230…665,500 yen (including 10% consumption tax)

232cc classical design! “Kawasaki W” traditional styling

The W230 is a model that brings the traditional design of the Kawasaki W, which was born in the 1960s, to a more accessible engine displacement class. The Kawasaki W, which has carved a place in the history of Japanese motorcycles, established the image of large motorcycles in the 1970s and created many fans.

The W series began its history in 1999 as the W650, which evolved into the W800. Now, in 2024, the W series opens up a new world. With the arrival of the W230, the traditional design of the Kawasaki W has become even more familiar.

The 232cc air-cooled, 4-stroke, SOHC, single-cylinder engine generates ample torque and provides a pulsating, nimble ride. The compact size gives a sense of security to all riders, and the elegant styling will make you feel the joy of owning a motorcycle.

Designed for enjoyment by beginners and veterans alike

The W230 is designed to be enjoyed by everyone, from first-time motorcyclists to experienced riders, and will be the perfect companion for exploring new worlds.

The W230, which incorporates classic aesthetics into everyday life, is ideal for a wide range of uses, from commuting to touring. It is a highly practical model that combines traditional styling with modern technology.

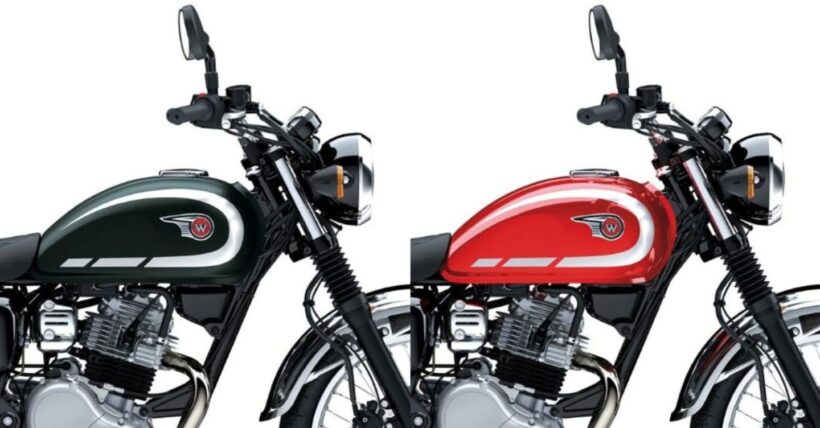

Detailed explanation of two new colors! Metallic Matte and Candy Paint

The new colors announced this time have been changed in color and graphics from the previous model.

Metallic Matte Dark Green x Ebony

This new color features a deep matte green. The elegant shine of the metallic paint and the calm texture of the matte finish are in perfect harmony. The two-tone color with ebony creates a classic yet modern impression.

Candy Persimmon Red x Ebony

The striking candy paint finish is a vibrant orange-red. The deep color and transparency of the candy paint further enhance the high-quality styling of the W230. Combined with the ebony finish, it creates a finish that is both sporty and elegant.

New graphic design

The graphic design has also been changed to match the new color scheme, and the design incorporates a modern sensibility while inheriting the tradition of the Kawasaki W Series.

Kawasaki W230 / Style and Color

Metallic Matte Dark Green x Ebony

Candy Persimmon Red x Ebony

Kawasaki W230 main specifications

Model: W230

Model: 8BK-BJ230A

Length x Width x Height: 2,125mm x 800mm x 1,090mm

Wheelbase: 1,415mm

Ground Clearance: 150mm

Seat Height: 745mm

Caster/Trail: 27.0°/99mm

Engine Type/Valve System: Air-cooled 4-stroke single-cylinder/SOHC 2-valve

Total Displacement: 232cm³

Bore x Stroke/Compression Ratio: 67.0mm x 66.0mm/9.0:1

Maximum Power: 13kW (18PS)/7,000rpm

Maximum Torque: 18N・m (1.8kgf・m)/5,800rpm

Starting Method: Electric Starter

Ignition Method: Battery & coil (full transistor ignition)

Lubrication system: Wet sump

Engine oil capacity: 1.3L

Fuel supply system: Fuel injection

Transmission type: Constant mesh 6-speed

return Clutch type: Wet multi-plate

gear Ratio:

　1st gear 3.000 (39/13)

　2nd gear 2.066 (31/15)

　3rd gear 1.555 (28/18)

　4th gear 1.260 (29/23)

　5th gear 1.040 (26/25)

　6th gear 0.851 (23/27)

Primary reduction ratio/secondary reduction ratio: 2.870 (89/31) / 2.714 (38/14)

Frame type: Steel pipe semi-double cradle

Suspension method: Front Telescopic (inner tube diameter 37mm), rear swing arm

Wheel travel: Front 117mm, rear 95mm

Tire size: Front 90/90-18M/C 51S, rear 110/90-17M/C 60S

Wheel size: Front 18 x 1.85, rear 17 x 2.15

Brake type: Front single disc 265mm (outer diameter), rear single disc 220mm (outer diameter)

Steering angle (left/right) 40°/40°

Vehicle weight: 143kg

Fuel tank capacity: 11L

Occupancy: 2 people

Fuel consumption rate (km/L) (※1):

　48.4km/L (Ministry of Land, Infrastructure, Transport and Tourism notified value: 60km/h, constant speed fuel consumption value, when 2 people are riding) (※2)

　40.5km/L (WMTC mode value class 2-1, when 1 person is riding) (※3)

Minimum turning radius 2.6m

Color:

Metallic Matte Dark Green x Ebony

Candy Persimmon Red x Ebony

*1: Fuel consumption rates are values ​​under specified test conditions. Actual results may vary depending on various factors, such as the customer's operating environment (weather, traffic congestion, etc.), driving method, vehicle condition (equipment, specifications), and maintenance status.
*2: The constant fuel consumption value is the fuel consumption rate based on actual measurements taken at a constant vehicle speed.
*3: The WMTC mode value is a calculated value based on the results of exhaust gas tests measured in a driving mode that is an international standard and includes starting, accelerating, and stopping. Driving mode classes are classified by engine displacement and maximum speed.
*Specifications and dimensions may be changed without notice for improvement purposes.
